MAIN FEATURES

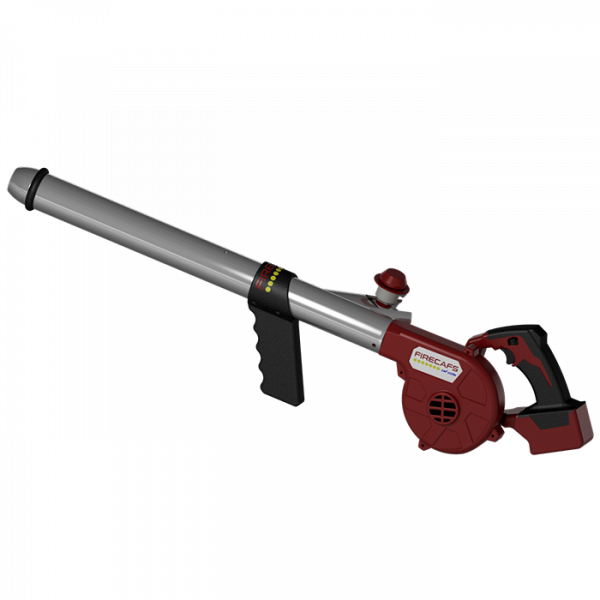

It is a high pressure wildfire caf unit for diaphragm and piston pumps. It is made to use with high pressure pumps with low flow rate.
It is a portable compressed air foam system that utilize a battery rotatory compressor and a backpack with 20 liters of foam.
Foam is mixed by the educator in mixing chamber into the nozzle with the water coming from a motor pump unit (from 20 to 90 liters/min @ from 30 to 100 bar) and with this special nozzle it is possible to produce a caf fire fighting solution.
- COMPATIBLE WITH DIAPHRAGM, PISTON AND ALSO CENTRIFUGAL MOTOR PUMPS
- COMPATIBLE WITH HIGH PRESSURE PUMPS: It can work from 20 BAR (290 PSI) to 100 BAR (1450 PSI).
- WATER FLOW: from 20 l/min (5 gpm) to 90 l/min (23 gpm)
- WATER PRESSURE: from 20 to 100 bar
- NO LIMITATION OF HOSE LENGTHS: you can do 50,100 or 200 meters of hoses and the caf system always works!
- WEIGHT: 4,5 kg + backpack
- FOAM TYPE: Firecafs foam A
- FOAM MIXER: from 0% to 3%
- TYPE OF FOAM: Dry or Wet
- RANGE OF MIXTURE COMPOUND: around 10 meters (more pressure, more range)
